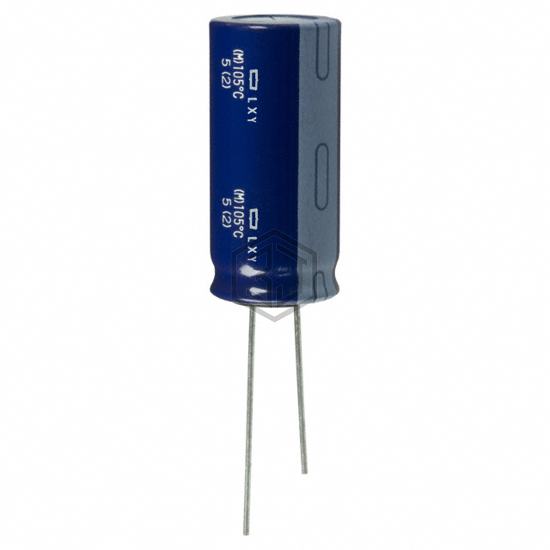

CAP ALUM 1200UF 20% 50V RADIAL
ELXY500ELL122ML35S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,375
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.392 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.32 A @ 100 kHz |
| Impedance | 27 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RZW122M1HBK-1825S | Surge | CAP ALUM 50V POLAR | 93% | View |
| B41888C6128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 50V RADIAL | 92% | View |
| 301R122U063GL2 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 63V RADIAL | 85% | View |
| EEU-FC1V122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 84% | View |
| EEU-FC1E122SB | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V RADIAL | 72% | View |
| EEU-FC1A122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RADIAL | 53% | View |
Submit your RFQ for ELXY500ELL122ML35S and get a quote within 24 hours.
