Cornell Dubilier Electronics (CDE)

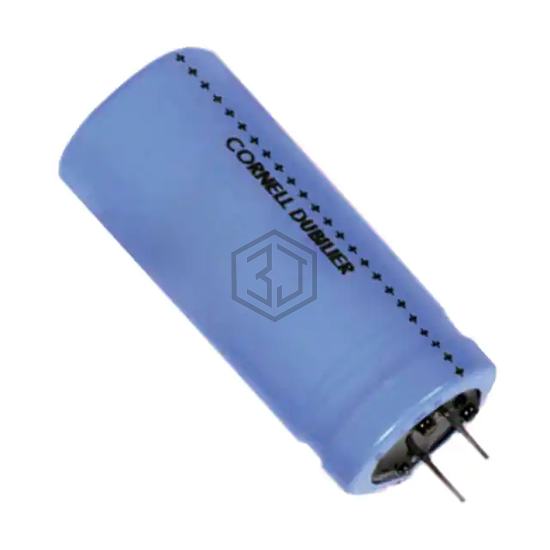

CAP ALUM 1200UF 63V RADIAL
301R122U063GL2 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 1200UF 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,559
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 82.5mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.300" (7.62mm) |
| Size / Dimension | 0.750" Dia (19.05mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214658122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 63V RADIAL | 100% | View |
| ELXY500ELL122ML35S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 85% | View |
| B41888C6128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 50V RADIAL | 85% | View |
| EEU-FC1V122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 62% | View |
| EEU-FC0J122L | Panasonic Electronic Components | CAP ALUM 1200UF 20% 6.3V RADIAL | 56% | View |
| EEU-FC1A122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for 301R122U063GL2 and get a quote within 24 hours.
