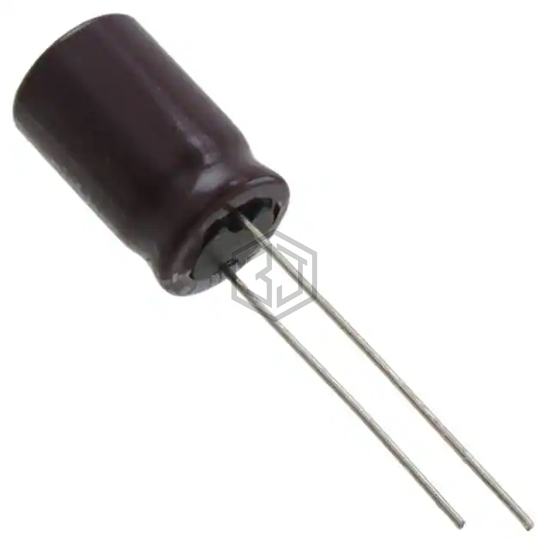

CAP ALUM 470UF 20% 16V RADIAL
UPM1C471MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,874
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 660 mA @ 120 Hz |
| Ripple Current @ High Frequency | 825 mA @ 10 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1C471MPD6TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY160ELL471MJ16S | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 89% | View |
| LXY16VB471M10X16LL | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 89% | View |
| MAL214065471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 86% | View |
| UPM1E471MHD6 | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 78% | View |
| 16YXA470MEFCT78X11.5 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 72% | View |
| B41853W6477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 66% | View |
Submit your RFQ for UPM1C471MPD6TD and get a quote within 24 hours.
