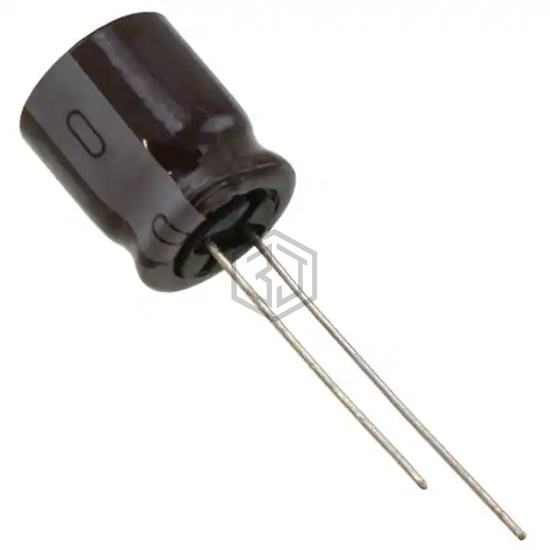

CAP ALUM 470UF 20% 25V RADIAL
UPM1E471MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 778
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 785 mA @ 120 Hz |
| Ripple Current @ High Frequency | 985 mA @ 10 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E471MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1E471MPD1CA | Nichicon | CAP ALUM 25V POLAR | 98% | View |
| UPX1C471MHD | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 85% | View |
| 25YXA470MEFCT410X12.5 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 81% | View |
| EY1V471MPN1020U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 80% | View |
| MAL214065471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 62% | View |
| 50WXA470MEFCGC16X16 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 56% | View |
