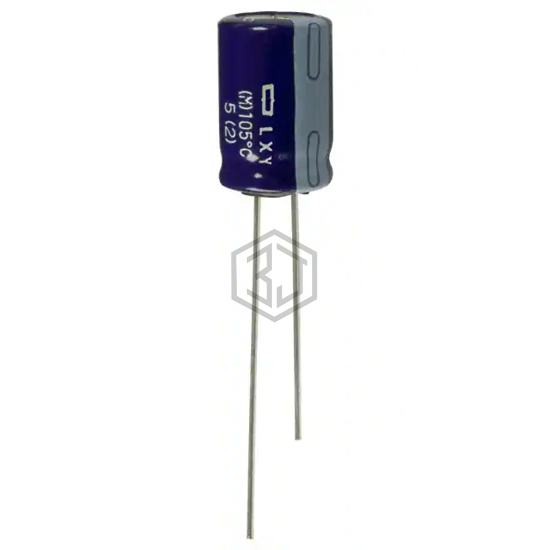

CAP ALUM 470UF 20% 16V RADIAL
ELXY160ELL471MJ16S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,299
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 412.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 825 mA @ 100 kHz |
| Impedance | 84 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LXY16VB471M10X16LL | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 100% | View |
| RXK471M1CBK-0815S | SURGE | CAP ALUM 470UF 20% 16V RADIAL | 82% | View |
| ECA-1HHG471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 50V RADIAL | 72% | View |
| ELXY250ELL471MK15S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 71% | View |
| 517D477M035CG8PE3 | Vishay Sprague | CAP ALUM 470UF 20% 35V RADIAL | 70% | View |
| EY1J471MP51220 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 54% | View |
Submit your RFQ for ELXY160ELL471MJ16S and get a quote within 24 hours.
