CAP ALUM 1000UF 20% 35V RADIAL

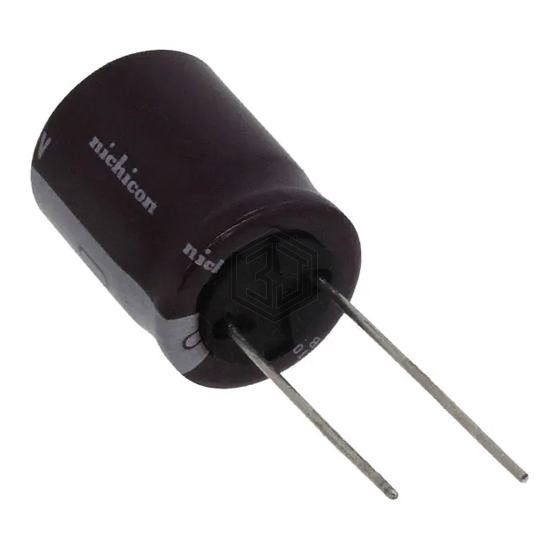

UPJ1V102MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,193
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.77 A @ 10 kHz |
| Impedance | 50 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1V102MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215051102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 79% | View |
| 860160680034 | Würth Elektronik | CAP ALUM 1000UF 20% 50V RADIAL | 77% | View |
| 672D108F6R3EK5D | Vishay Sprague | CAP ALUM 1000UF 6.3V RADIAL | 74% | View |
| EEU-HD1H102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V RADIAL | 66% | View |
| MAL211916102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 25V AXIAL | 62% | View |
| ELXZ160ELL102MJ20S | United Chemi-Con | CAP ALUM 1000UF 20% 16V RADIAL | 58% | View |
Submit your RFQ for UPJ1V102MHD6TN and get a quote within 24 hours.
