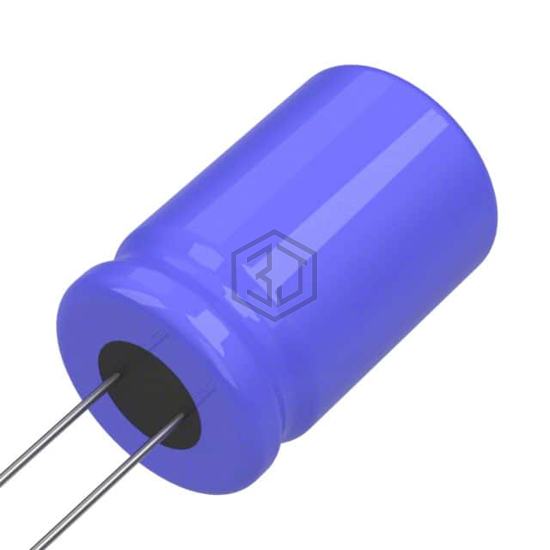

CAP ALUM 1000UF 6.3V RADIAL
672D108F6R3EK5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 1000UF 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,064
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 160mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.435 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.098" (27.90mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1V102MHD6TN | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 74% | View |
| B41042A5108M | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 25V RADIAL | 72% | View |
| MAL215051102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 70% | View |
| ELXV350ETS102ML20S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 68% | View |
| 860160680034 | Würth Elektronik | CAP ALUM 1000UF 20% 50V RADIAL | 63% | View |
| EEU-HD1H102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V RADIAL | 54% | View |
Submit your RFQ for 672D108F6R3EK5D and get a quote within 24 hours.
