Vishay Beyschlag/Draloric/BC Components

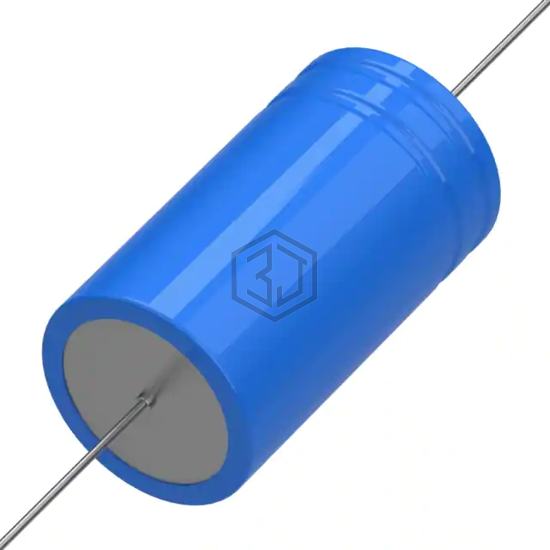

CAP ALUM 1000UF 25V AXIAL
MAL211916102E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 1000UF 25V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Axial, Can.
In Stock: 3,417
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 210mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.09 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 170 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1E102MHD | Nichicon | CAP ALUM 1000UF 20% 25V RADIAL | 80% | View |
| MAL214096105E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 80% | View |
| MAL229956102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 71% | View |
| MAL211825102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V AXIAL | 66% | View |
| MAL226050102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 62% | View |
| MAL224631102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 54% | View |
Submit your RFQ for MAL211916102E3 and get a quote within 24 hours.
