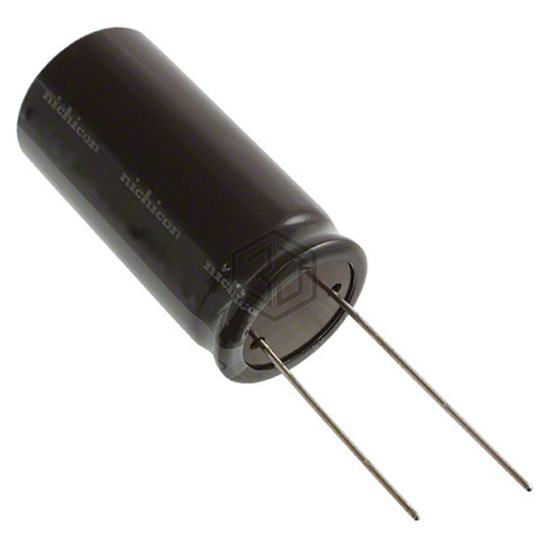

CAP ALUM 220UF 20% 400V RADIAL
UPB2G221MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 9,210
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2G221MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43505C5227M62 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 83% | View |
| EEU-FS2A221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 100V RADIAL | 71% | View |
| 672D227F040EK5J | Vishay Sprague | CAP ALUM 220UF 40V RADIAL | 71% | View |
| 200BXC220MEFC18X25 | Rubycon | CAP ALUM 220UF 20% 200V RADIAL | 68% | View |
| MAL214899225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 100V RADIAL | 58% | View |
| EEU-FR1V221BJ | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 56% | View |
