Panasonic Electronic Components
CAP ALUM 220UF 20% 100V RADIAL

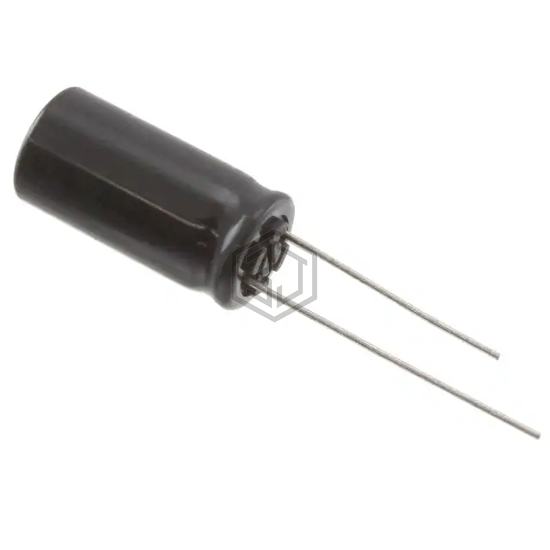

EEU-FS2A221B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,914
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for EEU-FS2A221B and get a quote within 24 hours.
