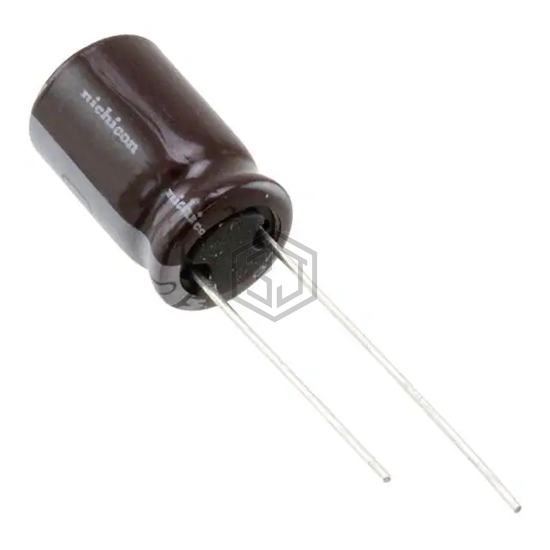

CAP ALUM 1000UF 20% 16V RADIAL
UPA1C102MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,268
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 930 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.24 A @ 100 kHz |
| Impedance | 49 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW102M1CBK-1020S | SURGE | CAP ALUM 1000UF 20% 16V RADIAL | 99% | View |
| UBW1C102MHD | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 93% | View |
| B41896C4108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 16V RADIAL | 88% | View |
| 25JXF1000MEFC10X20 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 82% | View |
| 517D108M025DG6AE3 | Vishay Sprague | CAP ALUM 1000UF 20% 25V RADIAL | 79% | View |
| ELXY250ETD102MK25S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 76% | View |
Submit your RFQ for UPA1C102MPD and get a quote within 24 hours.
