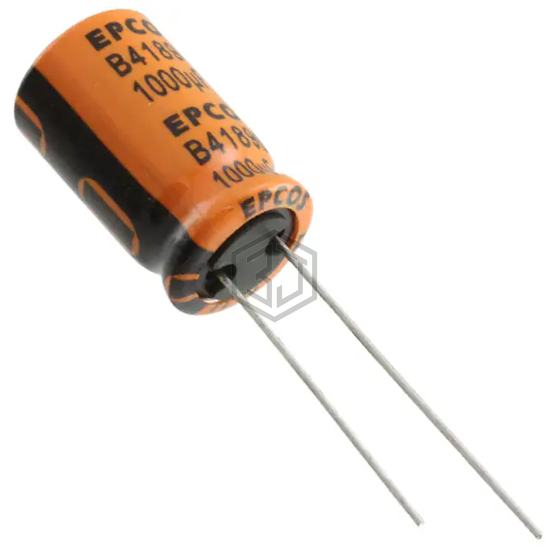

CAP ALUM 1000UF 20% 16V RADIAL
B41896C4108M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 254
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 215mOhm @ 120Hz |
| Lifetime @ Temp. | 7000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.82 A @ 100 kHz |
| Impedance | 55 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1C102MHD | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 90% | View |
| MAL214636102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 25V RADIAL | 77% | View |
| B41866C7108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 35V RADIAL | 73% | View |
| B41866C7108M009 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 35V RADIAL | 73% | View |
| B41690A7108Q001 | EPCOS - TDK Electronics | CAP ALUM 1000UF 35V AXIAL | 67% | View |
| B41789A5108Q001 | EPCOS - TDK Electronics | CAP ALUM 1000UF 25V RADIAL | 66% | View |
Submit your RFQ for B41896C4108M000 and get a quote within 24 hours.
