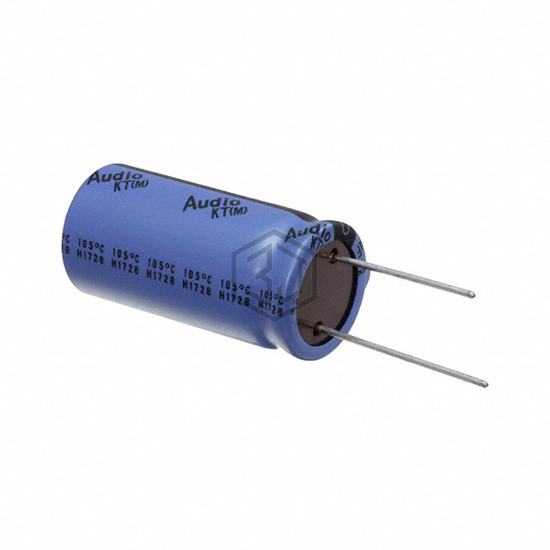

CAP ALUM 15000UF 20% 16V RADIAL
UKT1C153MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.795 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKT1C153MRD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16PX15000MEFCCT18X35.5 | Rubycon | CAP ALUM 15000UF 20% 16V RADIAL | 92% | View |
| EEU-HD1A153 | Panasonic Electronic Components | CAP ALUM 15000UF 20% 10V RADIAL | 81% | View |
| SEK153M6R3ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 6.3V RADIAL | 77% | View |
| ELXV6R3ELL153MM40S | United Chemi-Con | CAP ALUM 15000UF 20% 6.3V RADIAL | 72% | View |
| ECA-0JHG153 | Panasonic Electronic Components | CAP ALUM 15000UF 20% 6.3V RADIAL | 70% | View |
| EEU-FC0J153 | Panasonic Electronic Components | CAP ALUM 15000UF 20% 6.3V RADIAL | 66% | View |
Submit your RFQ for UKT1C153MRD and get a quote within 24 hours.
