Cornell Dubilier Electronics (CDE)
CAP ALUM 15000UF 20% 6.3V RADIAL

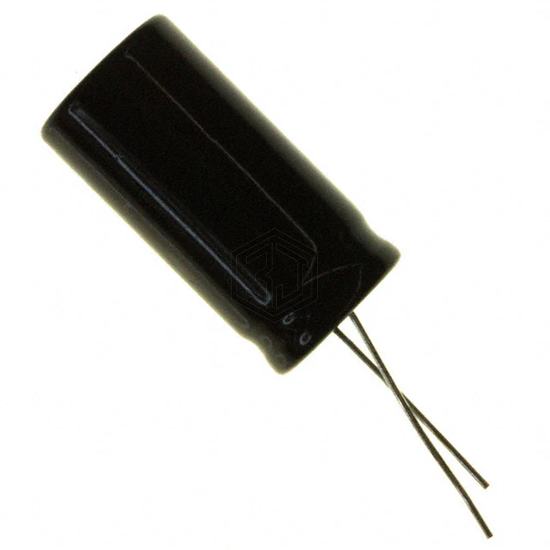

SEK153M6R3ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 15000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,355
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.28 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.736 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00JL515B00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 6.3V RADIAL | 99% | View |
| MALREKB05JL515B00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 6.3V RADIAL | 99% | View |
| EEU-HD1A153 | Panasonic Electronic Components | CAP ALUM 15000UF 20% 10V RADIAL | 83% | View |
| EKMQ100ELL153MLP1S | United Chemi-Con | CAP ALUM 15000UF 20% 10V RADIAL | 78% | View |
| EEU-HD1C153 | Panasonic Electronic Components | CAP ALUM 15000UF 20% 16V RADIAL | 76% | View |
| 16PX15000MEFCCT18X35.5 | Rubycon | CAP ALUM 15000UF 20% 16V RADIAL | 73% | View |
Submit your RFQ for SEK153M6R3ST and get a quote within 24 hours.
