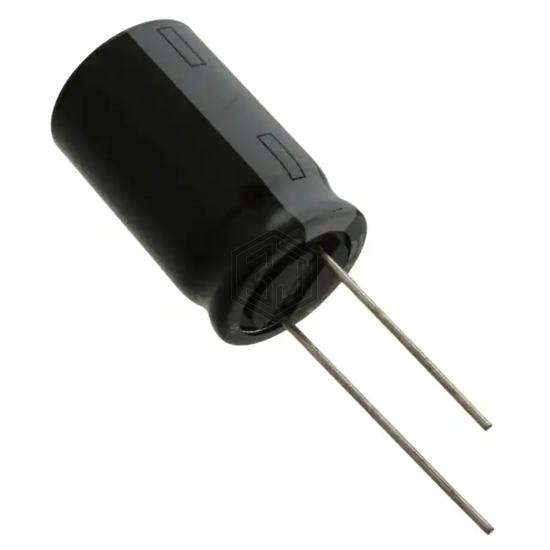

CAP ALUM 15000UF 20% 16V RADIAL
16PX15000MEFCCT18X35.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 15000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,340
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.07 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3805 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKT1C153MRD | Nichicon | CAP ALUM 15000UF 20% 16V RADIAL | 92% | View |
| UVZ1A153MHD | Nichicon | CAP ALUM 15000UF 20% 10V RADIAL | 83% | View |
| ECA-0JHG153 | Panasonic Electronic Components | CAP ALUM 15000UF 20% 6.3V RADIAL | 78% | View |
| ELXV6R3ELL153MM40S | United Chemi-Con | CAP ALUM 15000UF 20% 6.3V RADIAL | 64% | View |
| ELXZ6R3ELL153MM35S | United Chemi-Con | CAP ALUM 15000UF 20% 6.3V RADIAL | 59% | View |
| EEU-FC0J153 | Panasonic Electronic Components | CAP ALUM 15000UF 20% 6.3V RADIAL | 59% | View |
