CAP ALUM 3900UF 20% 16V RADIAL

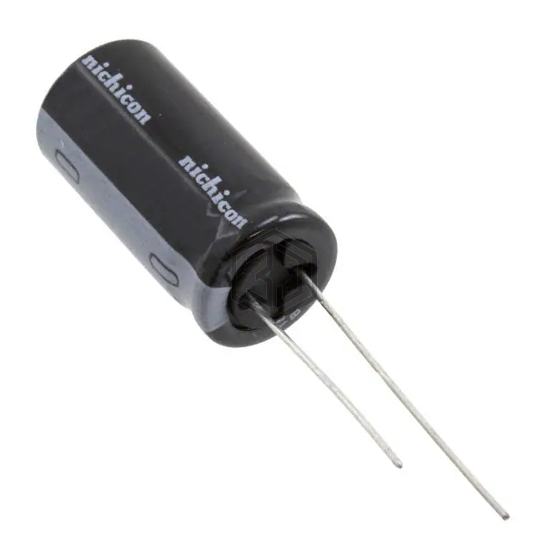

UHD1C392MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,354
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.768 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.46 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1C392MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16ZLQ3900MEFC12.5X30 | Rubycon | CAP ALUM 3900UF 20% 16V RADIAL | 94% | View |
| B41858D4398M9 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 92% | View |
| ELXV160ELL392ML30S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 78% | View |
| ELXV160ELL392MM25S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 75% | View |
| 35YXS3900MEFC18X35.5 | Rubycon | CAP ALUM 3900UF 20% 35V RADIAL | 74% | View |
| MAL215872392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 80V SNAP | 53% | View |
Submit your RFQ for UHD1C392MHD1TN and get a quote within 24 hours.
