CAP ALUM 3900UF 20% 16V RADIAL

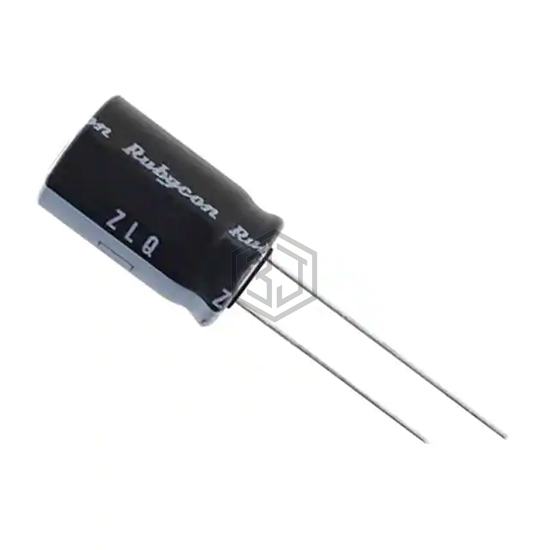

16ZLQ3900MEFC12.5X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3900UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,042
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.576 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 100 kHz |
| Impedance | 12 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHD1C392MHD1TN | Nichicon | CAP ALUM 3900UF 20% 16V RADIAL | 94% | View |
| 16ZLQ3900MEFC12.5X25 | Rubycon | CAP ALUM 3900UF 20% 16V RADIAL | 92% | View |
| EKMH800VNN392MA35U | United Chemi-Con | CAP ALUM 3900UF 20% 80V SNAP | 75% | View |
| UPJ1E392MHD | Nichicon | CAP ALUM 3900UF 20% 25V RADIAL | 74% | View |
| 381LQ392M100K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 100V SNAP | 68% | View |
| MAL215872392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 80V SNAP | 51% | View |
Submit your RFQ for 16ZLQ3900MEFC12.5X30 and get a quote within 24 hours.
