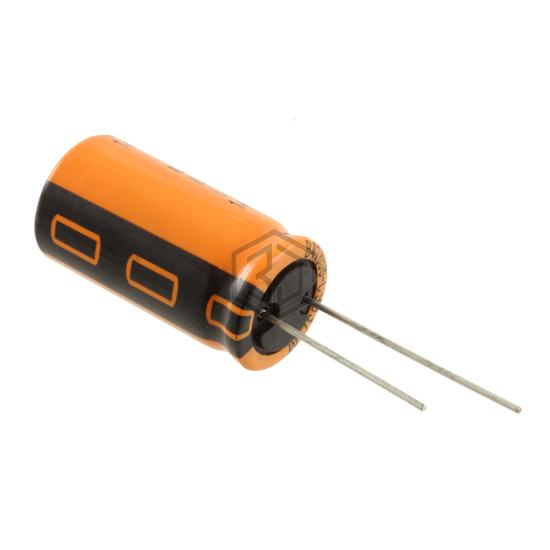

CAP ALUM 3900UF 20% 16V RADIAL
B41858D4398M9 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 3900UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,078
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 24mOhm @ 10kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.122 A @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214655392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 93% | View |
| ELXV160ELL392ML30S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 92% | View |
| ELXV160ELL392MM25S | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 89% | View |
| ELXV250ELL392MM35S | United Chemi-Con | CAP ALUM 3900UF 20% 25V RADIAL | 83% | View |
| UPJ1E392MHD | Nichicon | CAP ALUM 3900UF 20% 25V RADIAL | 81% | View |
| B41042A4398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 16V RADIAL | 81% | View |
Submit your RFQ for B41858D4398M9 and get a quote within 24 hours.
