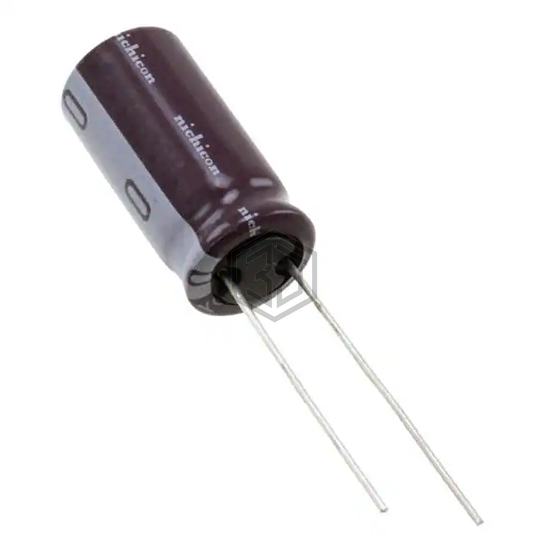

CAP ALUM 10UF 20% 450V RADIAL
UCY2W100MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 6,908
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214267109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 450V RADIAL | 98% | View |
| MAL214237109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 450V RADIAL | 93% | View |
| 100RX3010MT78X11.5 | Rubycon | CAP ALUM 10UF 20% 100V RADIAL | 67% | View |
| UBT2E100MPD | Nichicon | CAP ALUM 10UF 20% 250V RADIAL | 53% | View |
| 63YXJ10M5X11 | Rubycon | CAP ALUM 10UF 20% 63V RADIAL | 53% | View |
| EKMG251ELL100MJ16S | United Chemi-Con | CAP ALUM 10UF 20% 250V RADIAL | 51% | View |
