Vishay Beyschlag/Draloric/BC Components

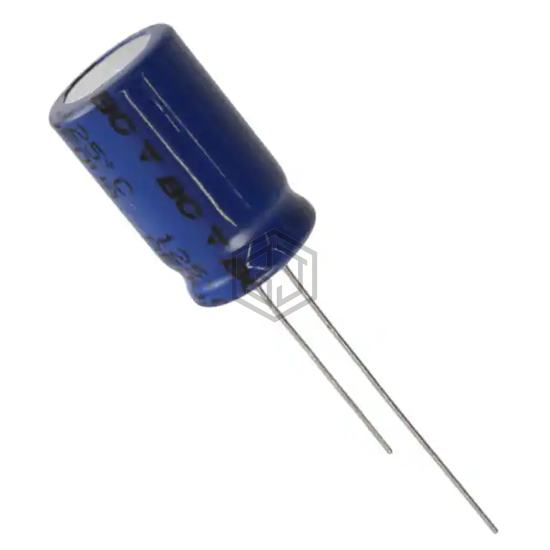

CAP ALUM 10UF 20% 450V RADIAL
MAL214237109E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 10UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 4,634
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2500 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 217.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2G100MHD | Nichicon | CAP ALUM 10UF 20% 400V RADIAL | 80% | View |
| UPW2V100MHD1TO | Nichicon | CAP ALUM 10UF 20% 350V RADIAL | 73% | View |
| UPJ2E100MHD1TO | Nichicon | CAP ALUM 10UF 20% 250V RADIAL | 65% | View |
| UBT2E100MPD | Nichicon | CAP ALUM 10UF 20% 250V RADIAL | 62% | View |
| EKMG251ELL100MJ16S | United Chemi-Con | CAP ALUM 10UF 20% 250V RADIAL | 60% | View |
| 63PX10MEFCT15X11 | Rubycon | CAP ALUM 10UF 20% 63V RADIAL | 56% | View |
