CAP ALUM 10UF 20% 250V RADIAL

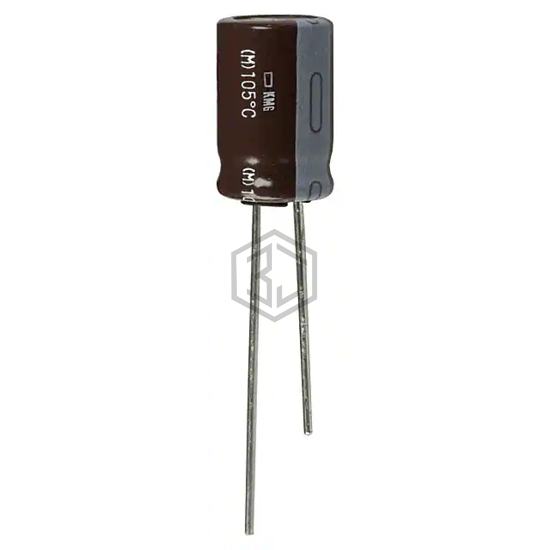

EKMG251ELL100MJ16S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 689
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 74 mA @ 120 Hz |
| Ripple Current @ High Frequency | 133.2 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT2E100MPD | Nichicon | CAP ALUM 10UF 20% 250V RADIAL | 97% | View |
| UPJ2E100MHD1TO | Nichicon | CAP ALUM 10UF 20% 250V RADIAL | 89% | View |
| UPW2V100MHD1TO | Nichicon | CAP ALUM 10UF 20% 350V RADIAL | 87% | View |
| UPJ2G100MHD | Nichicon | CAP ALUM 10UF 20% 400V RADIAL | 82% | View |
| MAL214237109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 450V RADIAL | 60% | View |
| 63PX10MEFCT15X11 | Rubycon | CAP ALUM 10UF 20% 63V RADIAL | 57% | View |
Submit your RFQ for EKMG251ELL100MJ16S and get a quote within 24 hours.
