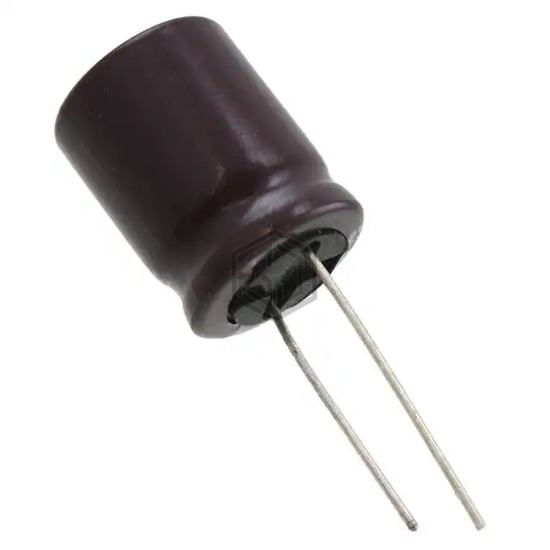

CAP ALUM 68UF 20% 160V RADIAL
UCA2C680MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 9,750
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 485 mA @ 120 Hz |
| Ripple Current @ High Frequency | 970 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UCA2C680MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 686CKE200MTJD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 68UF 20% 200V RADIAL | 79% | View |
| UCS2E680MHD1TN | Nichicon | CAP ALUM 68UF 20% 250V RADIAL | 72% | View |
| LGUW6680MELY | Nichicon | CAP ALUM 68UF 20% 420V SNAP | 71% | View |
| LGN2H680MELA25 | Nichicon | CAP ALUM 68UF 20% 500V SNAP | 71% | View |
| LAS2G680MELZ20 | Nichicon | CAP ALUM 68UF 20% 400V SNAP | 66% | View |
| MAL225919689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 500V SNAP | 64% | View |
