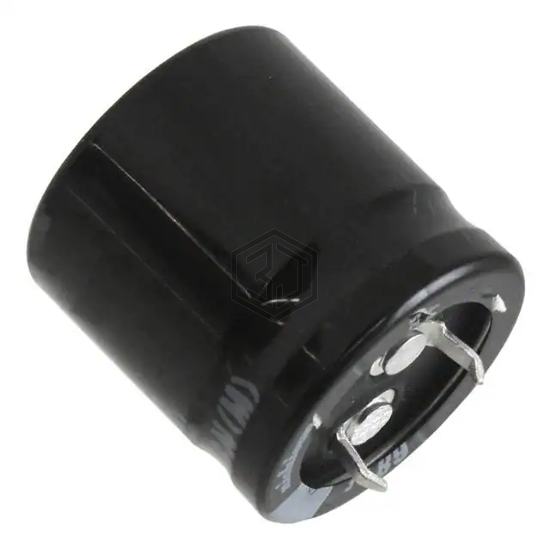

CAP ALUM 68UF 20% 500V SNAP
LGN2H680MELA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 1,890
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 520 mA @ 120 Hz |
| Ripple Current @ High Frequency | 743.6 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420KXW68MEFC16X25 | Rubycon | CAP ALUM 68UF 20% 420V RADIAL | 89% | View |
| LAS2G680MELZ20 | Nichicon | CAP ALUM 68UF 20% 400V SNAP | 87% | View |
| MAL225919689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 500V SNAP | 81% | View |
| 350BXA68M18X25 | Rubycon | CAP ALUM 68UF 20% 350V RADIAL | 81% | View |
| 400SXC68MEFC30X20 | Rubycon | CAP ALUM 68UF 20% 400V SNAP | 81% | View |
| EKXL421ELL680MM20S | United Chemi-Con | CAP ALUM 68UF 20% 420V RADIAL TH | 80% | View |
Submit your RFQ for LGN2H680MELA25 and get a quote within 24 hours.
