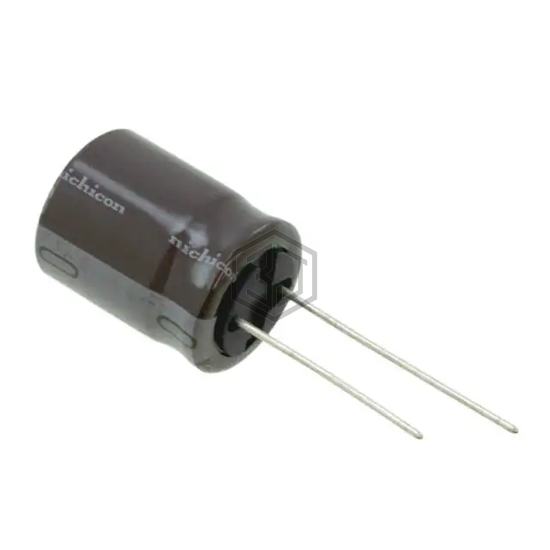

CAP ALUM 68UF 20% 250V RADIAL
UCS2E680MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 9,595
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 650 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXL401ELL680MK35S | United Chemi-Con | CAP ALUM 68UF 20% 400V RADIAL TH | 80% | View |
| EKXL421ELL680MM20S | United Chemi-Con | CAP ALUM 68UF 20% 420V RADIAL TH | 79% | View |
| MAL225957689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 450V SNAP | 75% | View |
| B43509A9686M000 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 400V SNAP | 73% | View |
| MAL225919689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 500V SNAP | 72% | View |
| URZ2C680MHD | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 61% | View |
Submit your RFQ for UCS2E680MHD1TN and get a quote within 24 hours.
