CAP ALUM POLY 47UF 20% 35V SMD

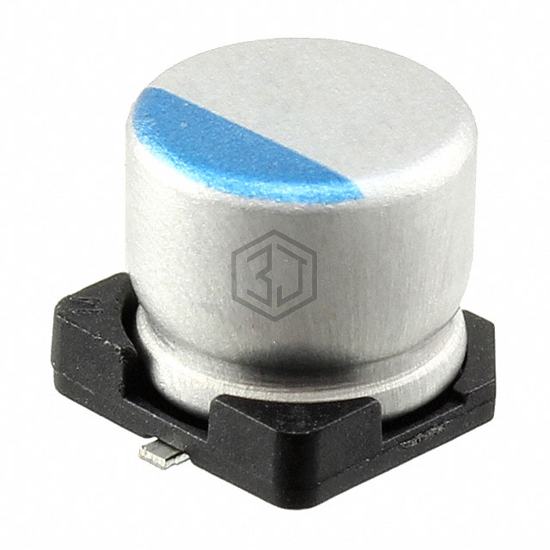

PCR1V470MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,619
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 48mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR1V470MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCM1V470MCL1GS | Nichicon | CAP ALUM POLY 47UF 20% 35V SMD | 97% | View |
| A768EB476M1ELAE042 | KEMET | CAP ALUM POLY 47UF 20% 25V SMD | 84% | View |
| 25SVPD39M | Panasonic Electronic Components | CAP ALUM POLY 39UF 20% 25V SMD | 60% | View |
| 20SVQP47M | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 20V SMD | 59% | View |
| MAL218697501E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 47UF 20% 16V SMD | 59% | View |
| MAL218697107E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 47UF 20% 50V SMD | 55% | View |
