Panasonic Electronic Components

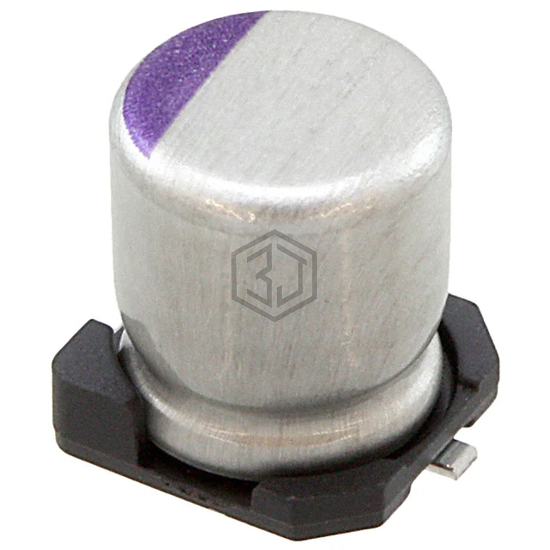

CAP ALUM POLY 47UF 20% 20V SMD
20SVQP47M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 47UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 20 V, package / case Radial, Can - SMD.
In Stock: 2,612
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 94.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218697501E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 47UF 20% 16V SMD | 85% | View |
| PCR1J470MCL1GS | Nichicon | CAP ALUM POLY 47UF 20% 63V SMD | 70% | View |
| PCX1C470MCL1GS | Nichicon | CAP ALUM POLY 47UF 20% 16V SMD | 70% | View |
| PCR1K470MCL1GS | Nichicon | CAP ALUM POLY 47UF 20% 80V SMD | 68% | View |
| MAL218697107E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 47UF 20% 50V SMD | 60% | View |
| 35SVPD47M | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 35V SMD | 59% | View |
Submit your RFQ for 20SVQP47M and get a quote within 24 hours.
