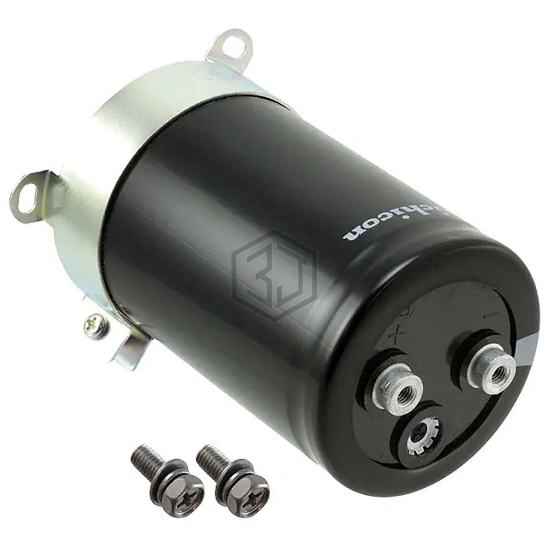

CAP ALUM 15000UF 20% 80V SCREW
LNT1K153MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,602
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.36 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100LSW15000MNB51X118 | Rubycon | CAP ALUM 15000UF 20% 100V SCREW | 80% | View |
| LNT1H153MSE | Nichicon | CAP ALUM 15000UF 20% 50V SCREW | 78% | View |
| B41554E8159Q000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 63V SCREW | 73% | View |
| LNT1V153MSEN | Nichicon | CAP ALUM 15000UF 20% 35V SCREW | 73% | View |
| B41580A9159M003 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 100V SCREW | 63% | View |
| B41580A9159M000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 100V SCREW | 63% | View |
Submit your RFQ for LNT1K153MSE and get a quote within 24 hours.
