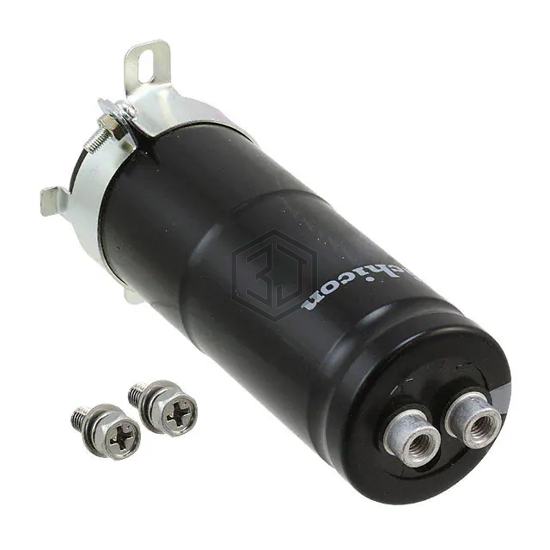

CAP ALUM 15000UF 20% 50V SCREW
LNT1H153MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,563
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.325 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 101153U050EF2A | Cornell Dubilier Knowles | CAP ALUM 50V POLAR | 100% | View |
| E32D450HPN153TA67U | Chemi-Con | CAP ALUM 15MF 45V SCREW CHAS MT | 93% | View |
| B41560A7159M000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 40V SCREW | 81% | View |
| LNT1K153MSE | Nichicon | CAP ALUM 15000UF 20% 80V SCREW | 78% | View |
| E32D500MLN153MA67U | United Chemi-Con | CAP ALUM 15000UF 20% 50V SCREW | 77% | View |
| 100LSW15000MNB51X118 | Rubycon | CAP ALUM 15000UF 20% 100V SCREW | 59% | View |
Submit your RFQ for LNT1H153MSE and get a quote within 24 hours.
