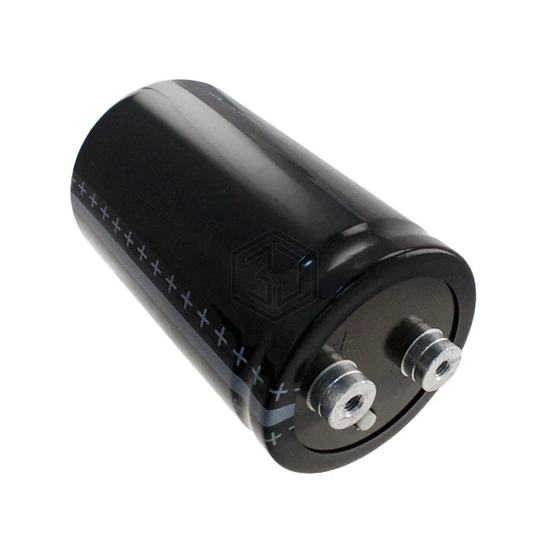

CAP ALUM 15000UF 20% 100V SCREW
B41580A9159M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 15000UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,003
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 10mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 10 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.532" Dia (64.30mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41580A9159M000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 100V SCREW | 100% | View |
| EKMH101LGC153MCC0U | Chemi-Con | CAP ALUM 12MF 50V SCREW CHAS MT | 88% | View |
| ALS80P153NT350 | KEMET | CAP ALUM 15000UF 20% 350V SCREW | 66% | View |
| ALS80H153NT350 | KEMET | CAP ALUM 15000UF 20% 350V SCREW | 66% | View |
| MAL210413153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 250V SCREW | 60% | View |
| LNT1J153MSEN | Nichicon | CAP ALUM 15000UF 20% 63V SCREW | 51% | View |
Submit your RFQ for B41580A9159M003 and get a quote within 24 hours.
