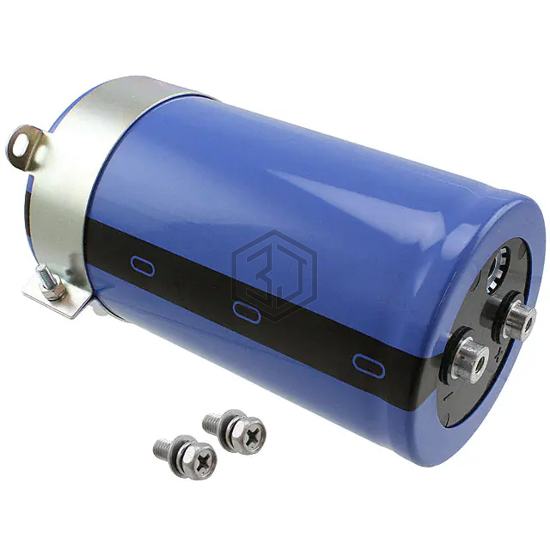

CAP ALUM 330000UF 20% 35V SCREW
LNR1V334MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330000UF 20% 35V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,284
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 28.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.630" (143.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25LSW330000MEFC77X151 | Rubycon | CAP ALUM 330000UF 20% 25V SCREW | 88% | View |
| ALS70G334NP040 | KEMET | CAP ALUM 330000UF 20% 40V SCREW | 88% | View |
| ALS71H334NP040 | KEMET | CAP ALUM 330000UF 20% 40V SCREW | 88% | View |
| ALS71C334MF025 | KEMET | CAP ALUM 330000UF 20% 25V SCREW | 87% | View |
| ALS70H334MF025 | KEMET | CAP ALUM 330000UF 20% 25V SCREW | 87% | View |
| B41458B5330M003 | EPCOS - TDK Electronics | CAP ALUM 330000UF 20% 25V SCREW | 86% | View |
Submit your RFQ for LNR1V334MSE and get a quote within 24 hours.
