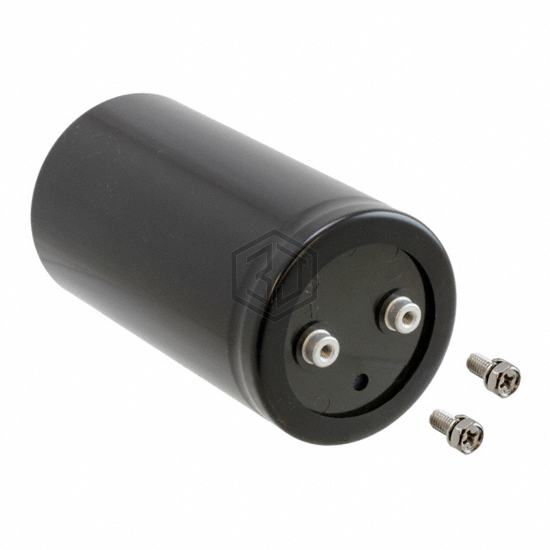

CAP ALUM 330000UF 20% 25V SCREW
25LSW330000MEFC77X151 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 330000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 26 A @ 120 Hz |
| Ripple Current @ High Frequency | 28.08 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 6.063" (154.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
