CAP ALUM 330000UF 20% 25V SCREW

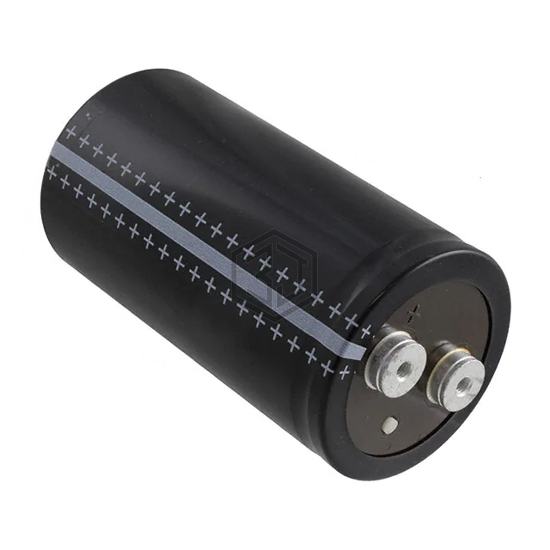

B41458B5330M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 330000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,593
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 6.4mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 5.1 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 5.677" (144.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25LSW330000MEFC77X151 | Rubycon | CAP ALUM 330000UF 20% 25V SCREW | 99% | View |
| ALS71C334MF025 | KEMET | CAP ALUM 330000UF 20% 25V SCREW | 88% | View |
| ALS70H334MF025 | KEMET | CAP ALUM 330000UF 20% 25V SCREW | 88% | View |
| LNR1V334MSE | Nichicon | CAP ALUM 330000UF 20% 35V SCREW | 86% | View |
| LNR1C334MSEB | Nichicon | CAP ALUM 330000UF 20% 16V SCREW | 81% | View |
| LNT1C334MSEN | Nichicon | CAP ALUM 330000UF 20% 16V SCREW | 75% | View |
Submit your RFQ for B41458B5330M003 and get a quote within 24 hours.
