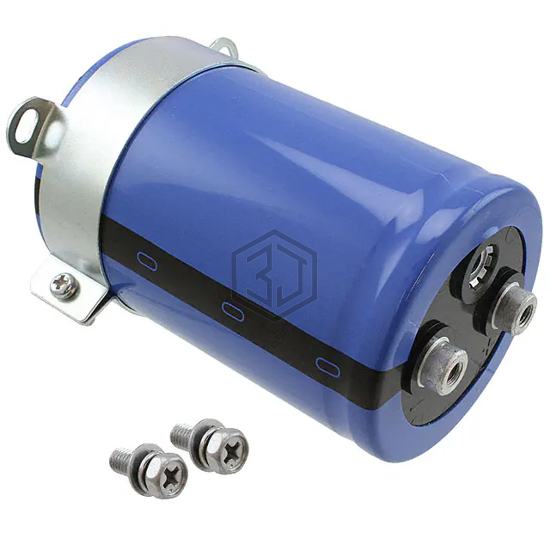

CAP ALUM 47000UF 20% 80V SCREW
LNR1K473MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47000UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,612
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 14.605 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80LSW47000M77X101 | Rubycon | CAP ALUM 47000UF 20% 80V SCREW | 91% | View |
| E36D630LPN473TDA5U | United Chemi-Con | CAP ALUM 47000UF 63V SCREW | 85% | View |
| LNT2A473MSEN | Nichicon | CAP ALUM 47000UF 20% 100V SCREW | 73% | View |
| B41458B9479M000 | EPCOS - TDK Electronics | CAP ALUM 47000UF 20% 100V SCREW | 70% | View |
| MAL210156473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 25V SCREW | 70% | View |
| MAL210157473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 40V SCREW | 67% | View |
Submit your RFQ for LNR1K473MSE and get a quote within 24 hours.
