Vishay Beyschlag/Draloric/BC Components

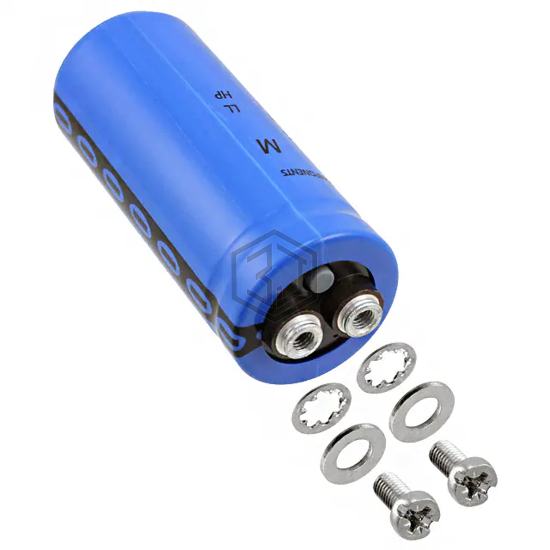

CAP ALUM 47000UF 20% 25V SCREW
MAL210156473E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 47000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,753
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.1 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 13 mOhms |
| Lead Spacing | 0.504" (12.80mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.280" (108.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS31A473DF025 | KEMET | CAP ALUM SCREW TERM 85C | 82% | View |
| E36D250HPN473MA79U | United Chemi-Con | CAP ALUM 47000UF 20% 25V SCREW | 80% | View |
| LNR1K473MSE | Nichicon | CAP ALUM 47000UF 20% 80V SCREW | 70% | View |
| 80LSW47000M77X101 | Rubycon | CAP ALUM 47000UF 20% 80V SCREW | 63% | View |
| B41456B8479M003 | EPCOS - TDK Electronics | CAP ALUM 47000UF 20% 63V SCREW | 61% | View |
| E36D630LPN473TDA5U | United Chemi-Con | CAP ALUM 47000UF 63V SCREW | 56% | View |
