Vishay Beyschlag/Draloric/BC Components

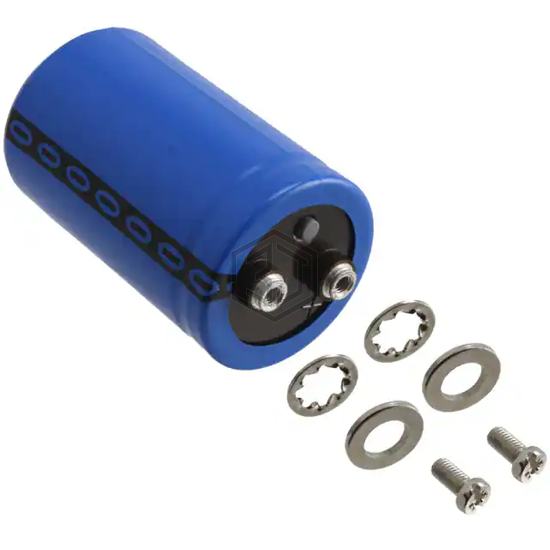

CAP ALUM 47000UF 20% 40V SCREW
MAL210157473E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 47000UF 20% 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,112
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 12mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.6 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 10 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.496" (88.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D500LPN473TD79U | United Chemi-Con | CAP ALUM 47000UF 50V SCREW | 86% | View |
| ALS80A473KF063 | KEMET | CAP ALUM 47000UF 20% 63V SCREW | 77% | View |
| MAL210676473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 25V SCREW | 72% | View |
| E36D630LPN473TDA5U | United Chemi-Con | CAP ALUM 47000UF 63V SCREW | 71% | View |
| 80LSW47000M77X101 | Rubycon | CAP ALUM 47000UF 20% 80V SCREW | 69% | View |
| LNT2A473MSEN | Nichicon | CAP ALUM 47000UF 20% 100V SCREW | 66% | View |
Submit your RFQ for MAL210157473E3 and get a quote within 24 hours.
