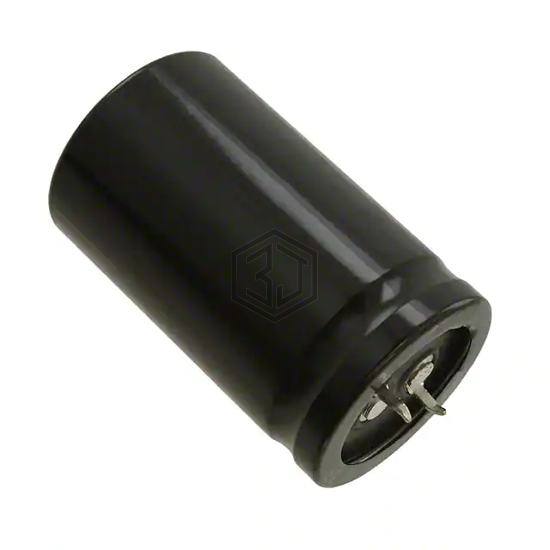

CAP ALUM 1500UF 20% 200V SNAP
LKX2D152MESB50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,069
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.2 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2D152MELB | Nichicon | CAP ALUM 1500UF 20% 200V SNAP | 95% | View |
| B43504G2158M82 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 94% | View |
| B43254C1158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 160V SNAP | 92% | View |
| LGW2D152MELC35 | Nichicon | CAP ALUM 1500UF 20% 200V SNAP | 81% | View |
| EEU-FP1E152B | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RADIAL | 66% | View |
| B41689A5158Q001 | EPCOS - TDK Electronics | CAP ALUM 1500UF 25V AXIAL | 66% | View |
Submit your RFQ for LKX2D152MESB50 and get a quote within 24 hours.
