Panasonic Electronic Components

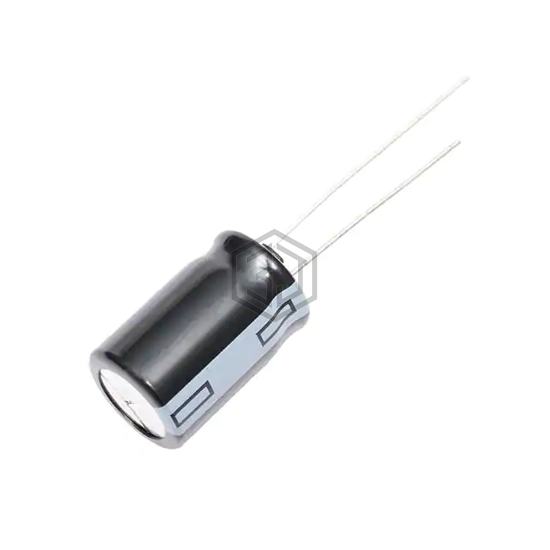

CAP ALUM 1500UF 20% 25V RADIAL
EEU-FP1E152B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,436
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 38mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.1125 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.25 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216036152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 100% | View |
| B41689A5158Q001 | EPCOS - TDK Electronics | CAP ALUM 1500UF 25V AXIAL | 86% | View |
| EEU-FK1E152L | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RAD TH | 85% | View |
| EEU-FK1E152S | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V RAD TH | 77% | View |
| ELXY350ELL152MK40S | United Chemi-Con | CAP ALUM 1500UF 20% 35V RADIAL | 73% | View |
| MAL214630152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 70% | View |
Submit your RFQ for EEU-FP1E152B and get a quote within 24 hours.
