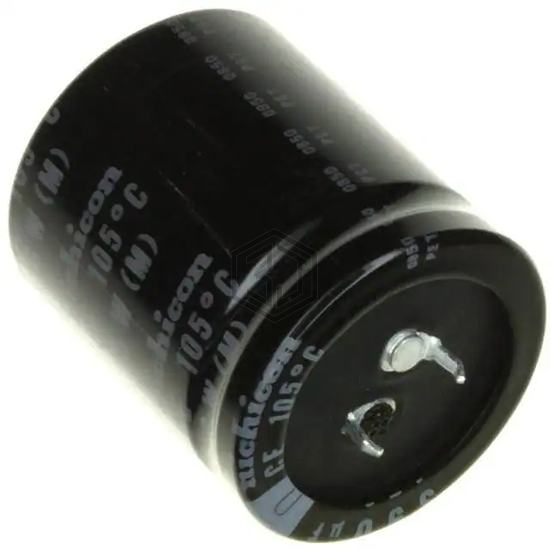

CAP ALUM 1500UF 20% 200V SNAP
LGW2D152MELC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 9,854
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.3 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504G2158M82 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 93% | View |
| LGU2D152MELB | Nichicon | CAP ALUM 1500UF 20% 200V SNAP | 85% | View |
| LKX2D152MESB50 | Nichicon | CAP ALUM 1500UF 20% 200V SNAP | 81% | View |
| B43254C1158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 160V SNAP | 73% | View |
| B41689A5158Q001 | EPCOS - TDK Electronics | CAP ALUM 1500UF 25V AXIAL | 64% | View |
| MAL216036152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for LGW2D152MELC35 and get a quote within 24 hours.
