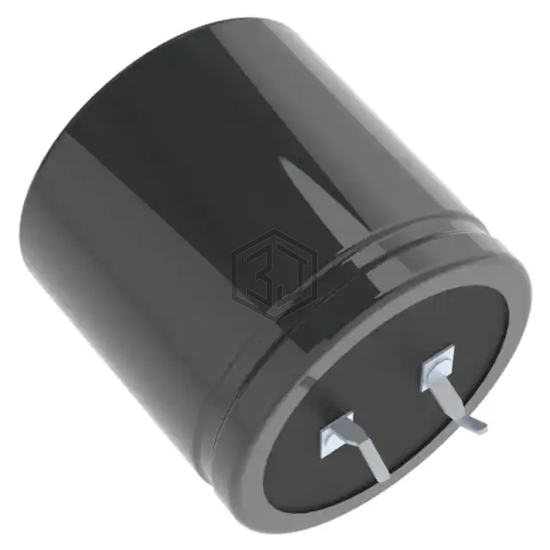

CAP ALUM 3300UF 20% 80V SNAP
LKS1K332MESB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 2,075
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LPW332M2AP45V-W | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 100V SNAP | 88% | View |
| ESMH630VSN332MP35U | United Chemi-Con | CAP ALUM 3300UF 20% 63V SNAP | 86% | View |
| ESMH101VNN332MQ50U | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 81% | View |
| 50USC3300MEFCSN22X30 | Rubycon | CAP ALUM 3300UF 20% 50V SNAP | 74% | View |
| ELXZ250ELL332ML30S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 62% | View |
| UPA0J332MHD | Nichicon | CAP ALUM 3300UF 20% 6.3V RADIAL | 51% | View |
