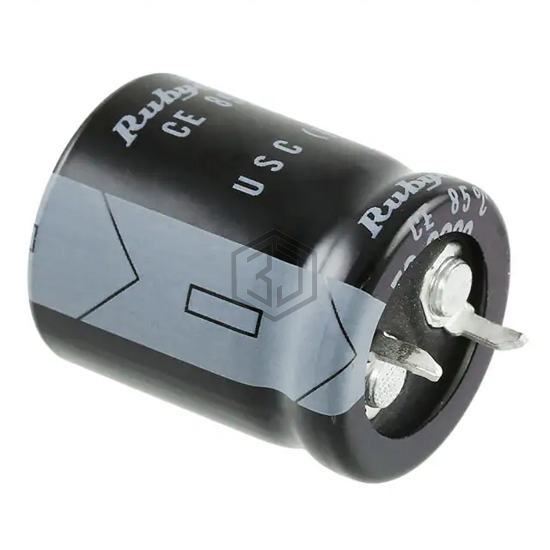

CAP ALUM 3300UF 20% 50V SNAP
50USC3300MEFCSN22X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 3,052
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.41 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7715 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH630VSN332MP35U | United Chemi-Con | CAP ALUM 3300UF 20% 63V SNAP | 88% | View |
| ELXZ250ELL332ML30S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 75% | View |
| LKS1K332MESB | Nichicon | CAP ALUM 3300UF 20% 80V SNAP | 74% | View |
| UPA0J332MHD | Nichicon | CAP ALUM 3300UF 20% 6.3V RADIAL | 60% | View |
| ECA-1EHG332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 25V RADIAL | 53% | View |
| ESMH101VNN332MQ50U | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 53% | View |
Submit your RFQ for 50USC3300MEFCSN22X30 and get a quote within 24 hours.
