Cornell Dubilier Electronics (CDE)
CAP ALUM 3300UF 20% 100V SNAP

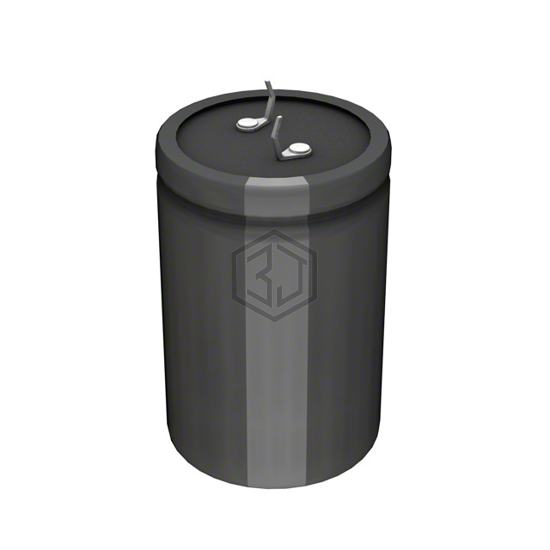

LPW332M2AP45V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 5,575
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 126mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.27 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.924 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW332M2AP45V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX332M080H052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 80V SNAP | 90% | View |
| ESMH101VNN332MQ50U | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 90% | View |
| LKS1K332MESB | Nichicon | CAP ALUM 3300UF 20% 80V SNAP | 88% | View |
| EKMH800VNN332MQ50U | United Chemi-Con | CAP ALUM 3300UF 20% 80V SNAP | 84% | View |
| ESMH630VSN332MP35U | United Chemi-Con | CAP ALUM 3300UF 20% 63V SNAP | 75% | View |
| ELXZ250ELL332ML30S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 64% | View |
Submit your RFQ for LPW332M2AP45V-W and get a quote within 24 hours.
