CAP ALUM 1800UF 20% 63V SNAP

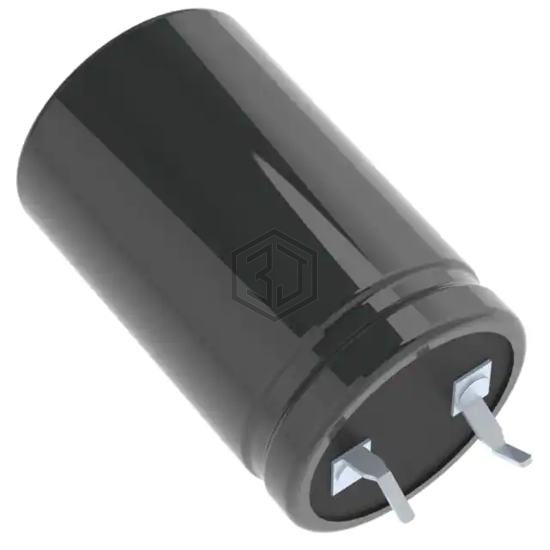

LKS1J182MESY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 8,957
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPA630ELL182MM40S | United Chemi-Con | CAP ALUM 1800UF 20% 63V RADIAL | 98% | View |
| LKG1J182MESBAK | Nichicon | CAP ALUM 1800UF 20% 63V SNAP | 96% | View |
| LKG1H182MESAAK | Nichicon | CAP ALUM 1800UF 20% 50V SNAP | 88% | View |
| EKY-500ELL182ML40S | United Chemi-Con | CAP ALUM 1800UF 20% 50V RADIAL | 84% | View |
| LGY1H182MELZ25 | Nichicon | CAP ALUM 1800UF 20% 50V SNAP | 80% | View |
| EEU-FC1V182SB | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 72% | View |
Submit your RFQ for LKS1J182MESY and get a quote within 24 hours.
