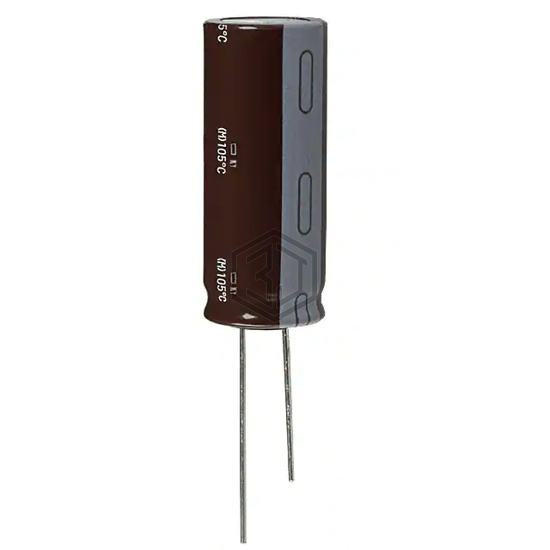

CAP ALUM 1800UF 20% 50V RADIAL
EKY-500ELL182ML40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,787
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.226 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.71 A @ 100 kHz |
| Impedance | 16 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896C6188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 50V RADIAL | 96% | View |
| EGPA630ELL182MM40S | United Chemi-Con | CAP ALUM 1800UF 20% 63V RADIAL | 86% | View |
| MAL224651182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 50V RADIAL | 77% | View |
| LGG2C182MELC30 | Nichicon | CAP ALUM 1800UF 20% 160V SNAP | 75% | View |
| EEU-FC1V182SB | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 73% | View |
| LGY1H182MELZ25 | Nichicon | CAP ALUM 1800UF 20% 50V SNAP | 65% | View |
Submit your RFQ for EKY-500ELL182ML40S and get a quote within 24 hours.
