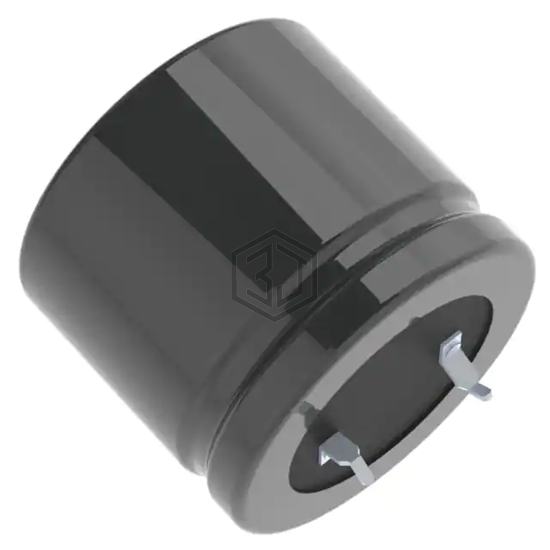

CAP ALUM 1800UF 20% 50V SNAP
LKG1H182MESAAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 6,911
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.65 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41896C6188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 50V RADIAL | 100% | View |
| MAL224651182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 50V RADIAL | 93% | View |
| LGY1H182MELZ25 | Nichicon | CAP ALUM 1800UF 20% 50V SNAP | 92% | View |
| EKY-500ELL182ML40S | United Chemi-Con | CAP ALUM 1800UF 20% 50V RADIAL | 90% | View |
| LKS1J182MESY | Nichicon | CAP ALUM 1800UF 20% 63V SNAP | 88% | View |
| EEU-FC1V182SB | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 79% | View |
