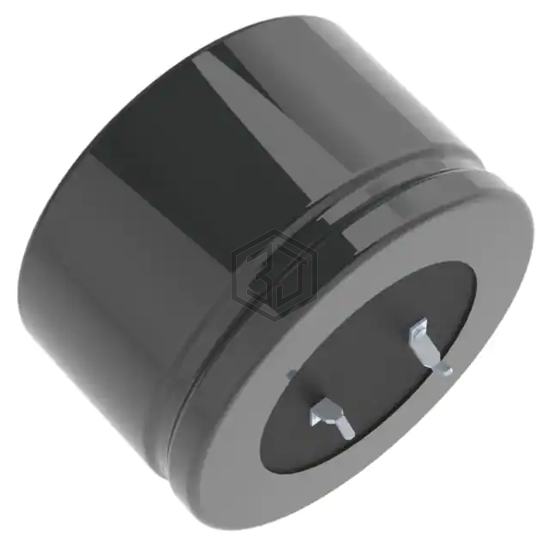

CAP ALUM 3900UF 20% 50V SNAP
LKG1H392MESCAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 4,525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.45 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU1H392MELZ | Nichicon | CAP ALUM 3900UF 20% 50V SNAP | 97% | View |
| LKG1H392MESABK | Nichicon | CAP ALUM 3900UF 20% 50V SNAP | 93% | View |
| EKMH630VSN392MR35S | United Chemi-Con | CAP ALUM 3900UF 20% 63V SNAP | 89% | View |
| LKG1V392MESYBK | Nichicon | CAP ALUM 3900UF 20% 35V SNAP | 85% | View |
| EEU-FM1A392S | Panasonic Electronic Components | CAP ALUM 3900UF 20% 10V RADIAL | 69% | View |
| LLS1K392MELZ | Nichicon | CAP ALUM 3900UF 20% 80V SNAP | 68% | View |
Submit your RFQ for LKG1H392MESCAK and get a quote within 24 hours.
