Panasonic Electronic Components

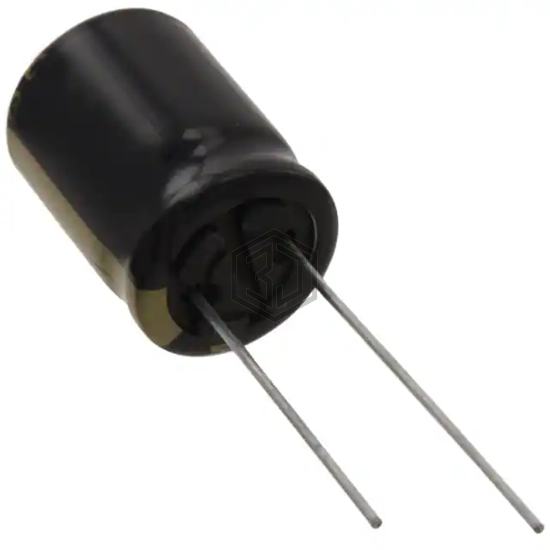

CAP ALUM 3900UF 20% 10V RADIAL
EEU-FM1A392S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3900UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,378
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.64 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.3 A @ 100 kHz |
| Impedance | 17 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080380027 | Würth Elektronik | CAP ALUM 3900UF 20% 16V RADIAL | 81% | View |
| KY16VB392M16X25LL | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 79% | View |
| 381LX392M063K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 63V SNAP | 77% | View |
| EKMH630VSN392MR35S | United Chemi-Con | CAP ALUM 3900UF 20% 63V SNAP | 76% | View |
| MAL214635392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 71% | View |
| 511D398M016ER4D | Vishay Sprague | CAP ALUM 3900UF 20% 16V RADIAL | 70% | View |
