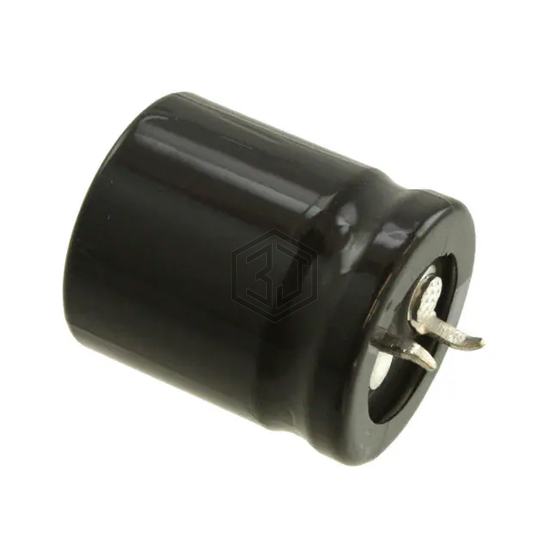

CAP ALUM 3900UF 20% 50V SNAP
LGU1H392MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 2,979
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.5875 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KY16VB392M16X25LL | United Chemi-Con | CAP ALUM 3900UF 20% 16V RADIAL | 75% | View |
| 16YXH3900MEFC16X25 | Rubycon | CAP ALUM 3900UF 20% 16V RADIAL | 74% | View |
| MAL214635392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 16V RADIAL | 70% | View |
| EEU-FM1A392S | Panasonic Electronic Components | CAP ALUM 3900UF 20% 10V RADIAL | 69% | View |
| 860080380027 | Würth Elektronik | CAP ALUM 3900UF 20% 16V RADIAL | 61% | View |
| 25YXG3900MEFCGC18X31.5 | Rubycon | CAP ALUM 3900UF 20% 25V RADIAL | 61% | View |
Submit your RFQ for LGU1H392MELZ and get a quote within 24 hours.
