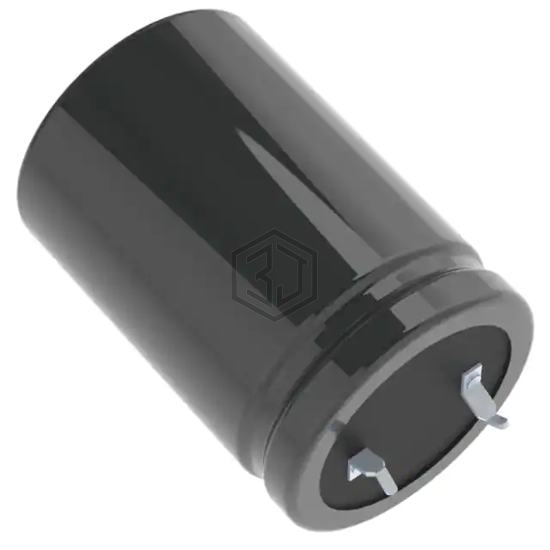

CAP ALUM 68UF 20% 420V SNAP
LAKW6680MELZ30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 8,044
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | 517.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420HXW68MEFR14.5X25 | Rubycon | CAP ALUM 68UF 20% 420V RADIAL | 82% | View |
| 500HXW68MEFR18X30 | Rubycon | CAP ALUM 68UF 20% 500V RADIAL | 69% | View |
| 250TXW68MEFR8X50 | Rubycon | CAP ALUM 68UF 20% 250V RADIAL TH | 67% | View |
| 80ZLJ68MT810X12.5 | Rubycon | CAP ALUM 68UF 20% 80V RADIAL | 67% | View |
| UBX2A680MHL | Nichicon | CAP ALUM 68UF 20% 100V RADIAL | 66% | View |
| UBX2C680MHL | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 64% | View |
