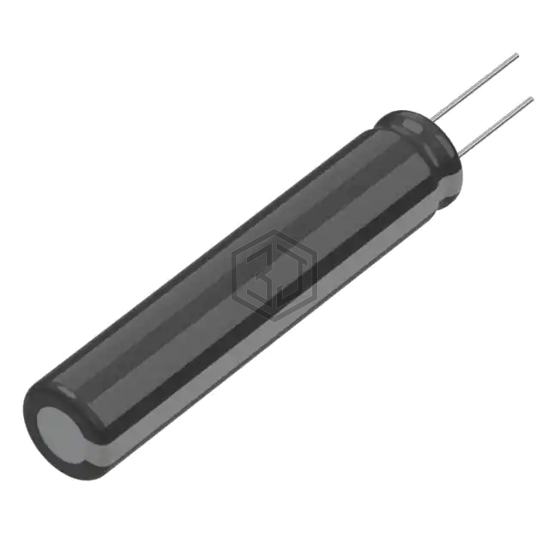

CAP ALUM 68UF 20% 250V RADIAL TH
250TXW68MEFR8X50 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 68UF 20% 250V RADIAL TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,613
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 590 mA @ 120 Hz |
| Ripple Current @ High Frequency | 826 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 2.067" (52.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420HXW68MEFR14.5X25 | Rubycon | CAP ALUM 68UF 20% 420V RADIAL | 83% | View |
| 350LLE68M16X25 | Rubycon | CAP ALUM 68UF 20% 350V RADIAL TH | 78% | View |
| UCY2V680MHD3TN | Nichicon | CAP ALUM 68UF 20% 350V RADIAL | 73% | View |
| 500HXW68MEFR18X30 | Rubycon | CAP ALUM 68UF 20% 500V RADIAL | 70% | View |
| UBX2A680MHL1TO | Nichicon | CAP ALUM 68UF 20% 100V RADIAL | 66% | View |
| UBX2A680MHL | Nichicon | CAP ALUM 68UF 20% 100V RADIAL | 66% | View |
