CAP ALUM 68UF 20% 160V RADIAL

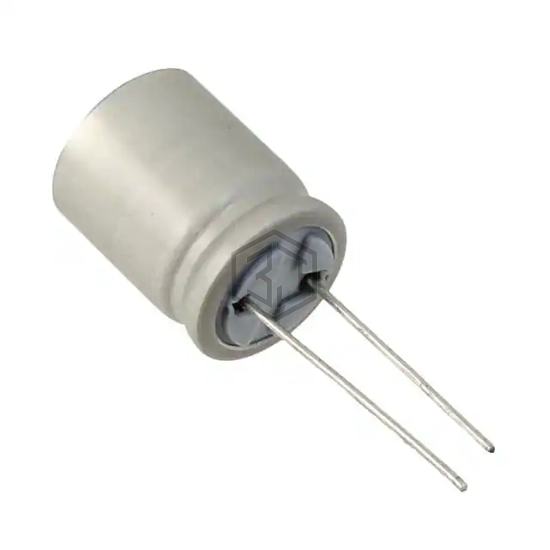

UBX2C680MHL is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 7,893
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 290 mA @ 120 Hz |
| Ripple Current @ High Frequency | 435 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
